Description
Material:

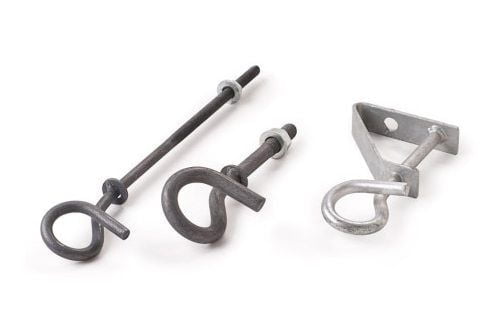

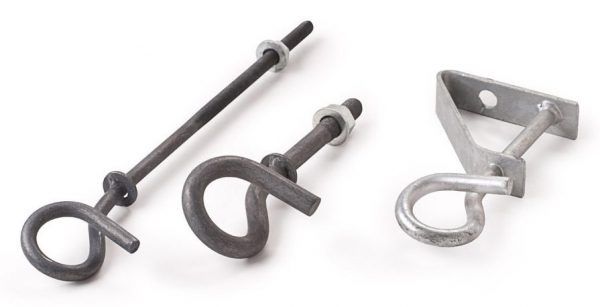

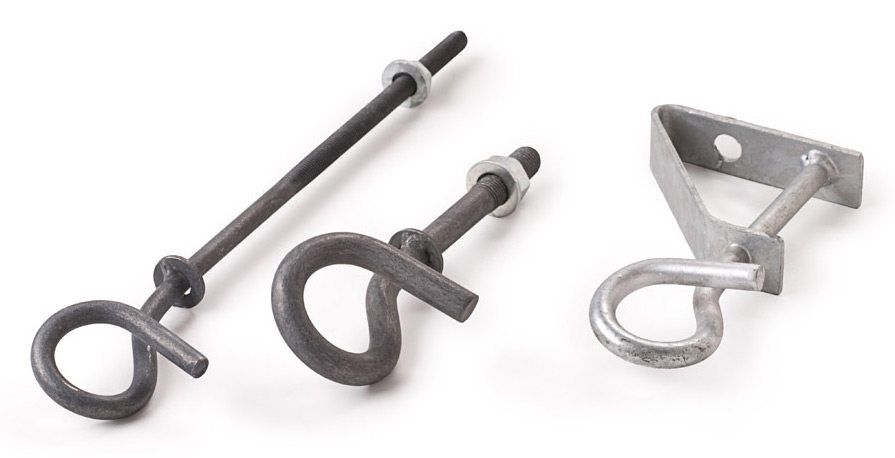

Anchoring Clamp – Steel St-37 hot dip galvanized.Specifications:
| Cat. No. | Product Description | Capacity (mm²) | Dimensions (mm) | Weight (kg.) |
||
|---|---|---|---|---|---|---|
| L | I1 | I2 | ||||
| 101625455 | Pigtail Rod for Wooden Poles M12 | 4X70 (max.) | 280 | 170 | 70 | 0.43 |
| 101625457 | Pigtail Rod for Wooden Poles M12 Long | 4X70 (max.) | 400 | 275 | 160 | 0.476 |
| 101625459 | Pigtail Rod for Wooden Poles M16 | - | - | - | - | - |
| 101625456 | Suspension Strap | 4X70 (max.) | - | - | - | - |
| 101625454 | Pigtail Rod for Concrete Walls | 4X70 (max.) | H | L | - | 0.48 |
| 110 | 200 | - | ||||
Diagram:
